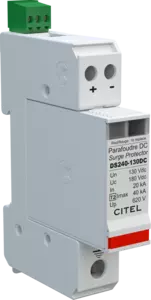

CITEL DS240S-130DC
DC power surge protector - 130 Vdc
Type 2 SPD, 2-poles, Uc 180 Vdc, In 20 kA, Imax 40 kA. CITEL P/N 310811.
₹3,470 per piece, ex-GST
Most buyers WhatsApp the part and quantity first: we confirm stock and dispatch date, and send a GST proforma to pay by bank transfer before dispatch. Paying online here is optional.
Delivery 5–6 weeks from order · minimum order 1 piece · GST tax invoice · pan-India dispatch
Ex-GST · delivered to serviceable PIN codes · remote/ODA freight quoted separately · price valid 30 days
Country of origin: France (CITEL). Exact origin for each part is stated on the product marking and your GST tax invoice.
Vasundhara Performance Solutions Pvt Ltd · incorporated 2016 · CIN U74999TG2016PTC112235 · GSTIN 36AAFCV6218F1ZB · D-U-N-S 860399487 · Udyam MSME registered · authorised CITEL distributor · Shipping · Returns & refunds
DC power surge protector, 130Vdc network (DC or PV), Uc 180Vdc / 150Vac, with remote signalling (S) (DS240 DC series, P/N 310811); In 20kA, Imax 40kA per pole, Imax total 80kA, MOV, 2-pole common mode, pluggable module (DSM240-130DC), DIN rail; IEC/EN 61643-11, UL1449 ed.5.
Range position: CITEL names the DDC40CS-20-180 as the current equivalent of this part.
About the DS240S range
DS210-DC surge protectors are designed to protect equipment connected to DC (and AC) power supplies from lightning surges. It is based on varistors matched to the network voltage: the varistors have thermal disconnection devices to control any end-of-life. These SPD are DIN rail compatible and is connected in parallel on the line to be protected.
CITEL lists the DDC40CS-20-180 as the newer equivalent of this part.
Specifications
| CITEL part number | 310811 |
| SPD type (IEC 61643) | 2 |
| Network | DC or PV network 130Vdc |
| Un — nominal line voltage | 130 Vdc |
| Uc — max continuous operating voltage | 180 Vdc |
| In — nominal discharge current | 20 kA |
| Imax — max discharge current | 40 kA |
| Protection modes | Common mode |
| Configuration | 2-poles |
| Remote signalling | Output on changeover contact |
| Mounting | Symmetrical rail 35 mm (EN 60715) |
| Standards | IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
| Replacement module | DSM240-130DC |
Specifications as published by CITEL on citel.fr. Confirm against the datasheet for your application.
CITEL datasheet for DS240S-130DC →
See the full CITEL Type 2 SPDs range → · All CITEL parts with prices
Similar CITEL parts
Other parts from the same family (DC power — Type 2), closest in voltage first.
| Part | What it is | Uc | Price ex-GST | Dispatch |
|---|---|---|---|---|
| DDC40CS-20-180 | DC power surge protector Type 2 -130 Vdc | 180 Vdc | On request | On request |
| DDC40CS-20-150 | DC power surge protector Type 2 -110 Vdc | 150 Vdc | On request | On request |
| DS240S-110DC | DC power surge protector - 110 Vdc | 150 Vdc | ₹2,970 | 5–6 weeks |
| DS240-220DC | DC power surge protector - 220 Vdc | 275 Vdc | ₹3,700 | 2 working days |
