CITEL DS131R-230

Name: CITEL DS131R-230
Brand: CITEL
SKU: DS131R-230

Type 1+2 AC surge protector - 1-pole

Type 1+2 SPD, Single phase, Uc 255 Vac, In 20 kA, I_max 50 kA, I_imp 12.5 kA. CITEL P/N 571501.

Price on request

Request price on WhatsApp Request a quote Datasheet (PDF)

On request · minimum order 1 piece · GST tax invoice · pan-India dispatch

Country of origin: France (CITEL). Exact origin for each part is stated on the product marking and your GST tax invoice.

GST tax invoiceRaised against your GSTIN on every order and emailed to you.

Secure paymentUPI, card and netbanking through Razorpay. Your card details are entered on Razorpay’s form, never on our servers.

Covered if it arrives wrongWrong item: tell us within 7 days. Transit damage or shortage: within 48 hours of delivery.

Vasundhara Performance Solutions Pvt Ltd · incorporated 2016 · CIN U74999TG2016PTC112235 · GSTIN 36AAFCV6218F1ZB · D-U-N-S 860399487 · Udyam MSME registered · authorised CITEL distributor · Shipping · Returns & refunds

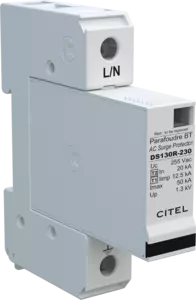

CITEL DS131R-230 surge protection device

Extreme-duty Type 1+2 AC surge protector, 1-pole module, 230V network (Uc 255Vac) (DS130R series); Iimp 12.5kA, Imax 50kA, pluggable one-pole module for multipolar assembly, common mode, for installation entrance.

Range position: CITEL names the DAC1-13-10-275 as the current equivalent of this part.

About the DS131R range

The DS130R is an extreme duty Type 1+2 designed to protect the entrance of the electrical installation. The DS130R is a one-pole SPD and can be used in common mode or common and differential mode. DS130R AC surge protectors are designed to be connected in multi-pole configuration to protect single-phase, 3-phase and 3-phase+neutral AC networks. This SPD is DIN rail compatible.

CITEL lists the DAC1-13-10-275 as the newer equivalent of this part.

Specifications

CITEL part number	571501
SPD type (IEC 61643)	1+2
Network	230/400V
Un — nominal line voltage	230 Vac
Uc — max continuous operating voltage	255 Vac
In — nominal discharge current	20 kA
I_max — max discharge current	50 kA
I_imp — impulse current (10/350 µs)	12.5 kA
Up — voltage protection level	1.3 kV
Protection modes	Common Mode or Differential Mode
Configuration	Single phase
Mounting	Symmetrical rail 35 mm (EN 60715)
Standards	IEC 61643-11 / EN 61643-11 / UL1449 ed.5
Replacement module	DSM130R-230

Specifications as published by CITEL on citel.fr. Confirm against the datasheet for your application.

CITEL datasheet for DS131R-230 →

See the full CITEL Type 1 SPDs range → · All CITEL parts with prices

Similar CITEL parts

Other parts from the same family (AC power — Type 1+2 (lightning current)), closest in voltage first.
