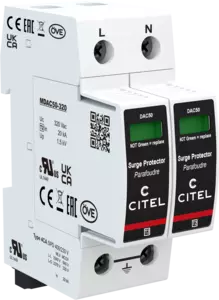

CITEL DAC50S-20-320
Type 2 AC surge protector - Single-phase
Type 2 SPD, Single phase, Uc 320 Vac, In 20 kA, Imax 50 kA. CITEL P/N 821110322.
Price on request
On request · minimum order 1 piece · GST tax invoice · pan-India dispatch
Country of origin: France (CITEL). Exact origin for each part is stated on the product marking and your GST tax invoice.
Vasundhara Performance Solutions Pvt Ltd · incorporated 2016 · CIN U74999TG2016PTC112235 · GSTIN 36AAFCV6218F1ZB · D-U-N-S 860399487 · Udyam MSME registered · authorised CITEL distributor · Shipping · Returns & refunds
Type 2 AC surge protector - single-phase (2-pole), 230/400V TN, Uc 320 Vac, with remote signalling (CITEL P/N 821110322); In 20 kA, Imax 50 kA, Imax total 100 kA, Isccr 50 000 A, MOV, L/PE and N/PE, spare MDAC50-320; IEC 61643-11 / EN 61643-11.
About the DAC50S range
The pluggable surge protectors Type 2 DAC50, are designed to protect AC powerline at the main switchboard of the installation. These SPDs are based on high energy varistor equipped with thermal disconnector and failure indicator, to comply with standards and to provide a maximum protection efficiency, a high impulse current capability and an improved reliability. The surge protectors DAC50 are available in multipolar version and in several voltages to protect single or 3-phase networks.
Specifications
| CITEL part number | 821110322 |
| SPD type (IEC 61643) | 2 |
| Network | 230/400V |
| Uc — max continuous operating voltage | 320 Vac |
| In — nominal discharge current | 20 kA |
| Imax — max discharge current | 50 kA |
| Up — voltage protection level | 1.5 kV |
| Protection modes | L/PE and N/PE |
| Configuration | Single phase |
| Remote signalling | Output on changeover contact |
| Mounting | Symmetrical rail 35 mm (EN 60715) |
| Standards | IEC 61643-11 / EN 61643-11 |
| Replacement module | MDAC50-320 |
Specifications as published by CITEL on citel.fr. Confirm against the datasheet for your application.
CITEL datasheet for DAC50S-20-320 →
See the full CITEL Type 2 SPDs range → · All CITEL parts with prices
