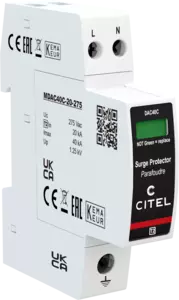

CITEL DAC40C-20-275
Compact 1-phase Type 2 (or 3) surge protector - Pluggable
Type 2 SPD, Single phase, Uc 275 Vac, In 20 kA, Imax 40 kA. CITEL P/N 821510211.
Price on request
On request · minimum order 1 piece · GST tax invoice · pan-India dispatch
Country of origin: France (CITEL). Exact origin for each part is stated on the product marking and your GST tax invoice.
Vasundhara Performance Solutions Pvt Ltd · incorporated 2016 · CIN U74999TG2016PTC112235 · GSTIN 36AAFCV6218F1ZB · D-U-N-S 860399487 · Udyam MSME registered · authorised CITEL distributor · Shipping · Returns & refunds
Compact 1-phase Type 2 (or 3) surge protector, pluggable, 230/400V TN, Uc 275 Vac (CITEL P/N 821510211); In 20 kA, Imax 40 kA, Imax total 80 kA, Isccr 10 000 A, MOV, L/PE and N/PE, spare MDAC40C-20-275, remote signalling option DAC40CS-20-275; IEC 61643-11 / EN 61643-11 / UL1449 ed.5.
About the DAC40C range
The DAC40C Type 2 Compact plugable surge protectors (SPD) are intended to be connected at the TGBT or divisional panel level. Their compact format allows them to be installed in very small spaces. The DAC40C SPDs are available have a discharge capacity of 40 kA, in single-phase or 3-phase configuration and with various voltages in order to protect any type of networks. Based on varistance technology equipped with disconnector and associated indicator, these SPD ensure maximum protection efficiency, flow capacity and reliability.
Specifications
| CITEL part number | 821510211 |
| SPD type (IEC 61643) | 2 |
| Network | 230/400V |
| Uc — max continuous operating voltage | 275 Vac |
| In — nominal discharge current | 20 kA |
| Imax — max discharge current | 40 kA |
| Up — voltage protection level | 1.25 kV |
| Protection modes | L/PE and N/PE |
| Configuration | Single phase |
| Mounting | Symmetrical rail 35 mm (EN 60715) |
| Standards | IEC 61643-11 / EN 61643-11 / UL1449 ed.5 |
| Replacement module | MDAC40C-20-275 |
Specifications as published by CITEL on citel.fr. Confirm against the datasheet for your application.
CITEL datasheet for DAC40C-20-275 →
See the full CITEL Type 2 SPDs range → · All CITEL parts with prices
